Types of connections

How it works

Compatible materials

Hardwood

Softwood

Plywood

MDF

MFC

  • A self-clamping single component connector

  • Requires just one CNC machining process

  • Creates an incredibly strong joint

  • Quick and simple assembly of cabinets

  • Can be reassembled many times

  • Made from Glass fibre reinforced nylon

The PEANUT® 1 connector is designed for manufacturers who only have 3-axis CNC nesting machines. The recess for the connector and the corresponding key hole are all machined on the face of the panel. As only face machining is required, manufacturers can create all panels for furniture in one machining operation. Once inserted, all panels made with PEANUT® components can be packed flat and depending on the tightness of the joint, can be assembled with no tools.

The PEANUT® 1 is made of a strong reinforced plastic and has rows of teeth around the body to provide high gripping strength when inserted. The body shape is designed for fast machining, requiring only a 25mm and 5mm drill bit to create the recess for the connector. Bevelled edges make aligning the PEANUT® 1 easy and the small 5mm notch guides the component into the perfect position. The PEANUT® 1 is available in 8 colours, enabling it to blend with many wood finishes.



The PEANUT® head has been specially designed to maximise ease of assembly and joint strength. Due to its dome shape, the PEANUT® head smoothly slides along the slot created by the T-shaped PEANUT® Cutter. In assembly, the PEANUT head rides over the lip of the PEANUT® slot and slides to the end, this action creates a strong clamping force, pulling the two panels together from the inside.

PEANUT® 1

The Ultimate CNC Nesting Solution

Technical Instructions

PEANUT® 1 Videos

Other Products

Machining

Machine your PEANUT® 1 holes with the PEANUT® 1 Drill Pack (5mm hole first, then 25mm hole) and PEANUT® CNC Slots with the PEANUT® Cutter

Insert the PEANUT® 1

Use a mallet or hammer to insert the PEANUT® 1 flush

Join your furniture

Simply connect your furniture together

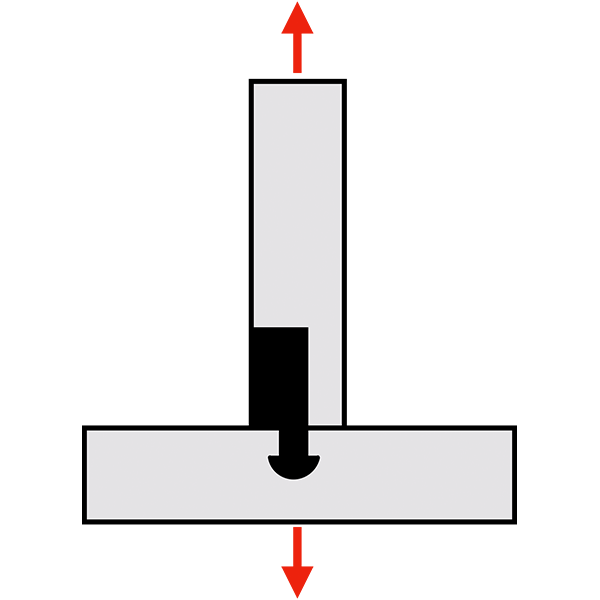

Tensile Strength*

MDF - 95kg / MFC - 75kg

based on 1 component

Shear Strength*

MDF - 135kg / MFC - 120kg

based on 2 components

Shear Strength*

MDF - 95kg / MFC - 65kg

based on 2 components

*Tests conducted by either CATAS or Intelligent Fixings. Testing based on an average of 3 separate tests. See here for more information.
